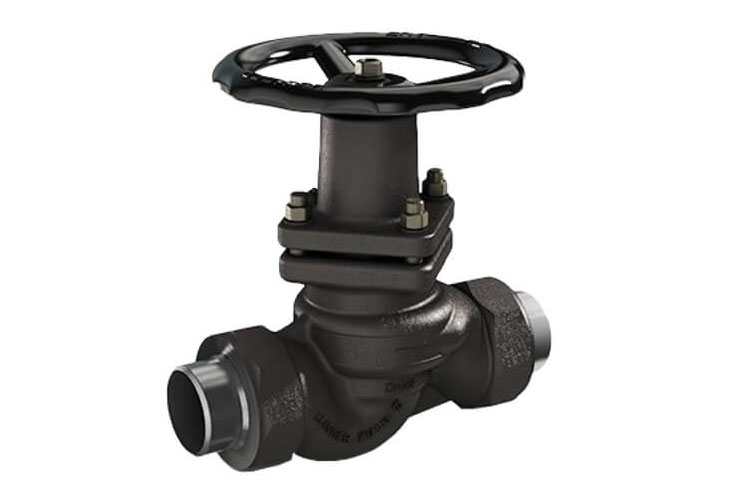

KVSN DN 15-50 Butt Weld Ends Piston Valve

Key Features

• Piston valve with bore
• Sealing via two elastic KX-GT valve rings
• Excellent control characteristics
• Fire Safe
• Special regulating design available (KVRKSN)
• Temperature-10 °C to +400 °C (see P-T diagram)

Material Used

• Cast steel 1.0619 (Material code VIII)

Dimensions

KLINGER Standard

Connections

Butt weld ends in accordance with EN 12627

Acceptance Testing

• Seat leak tightness: EN 12266-1 P12, leakage rate A
• Tightness to atmosphere: EN 12266-1 P11
• Strength: EN 12266-1 P10
