KLINGER WESTAD Scorpio 2X Butterfly Valves
The Scorpio 2X butterfly valves are designed for special applications that will perform under extreme conditions and are available in lug, wafer, and flange design.

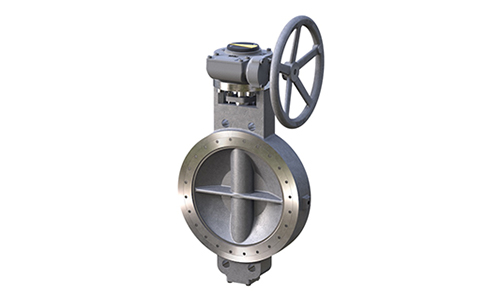

WAFER TYPE
LUG TYPE
DOUBLE FLANGED TYPE
Scorpio 2X Butterfly Valves – Key Features
- Developed for use in LPG/LEG-, CHEMICAL-, OIL-, Sea Water Systems etc.
- Double eccentric design to reduce wear on seat
- Bi-directional at full pressure rating
- Free access to stuffing box and gland
- Shaft extensions available
- Fire safe acc. To API 607
Specifications
- Temperature range: -110°C to +200°C
- Pressure range: 25/50 bar
- Flange standards: ANSI Class 150/300, PN10/16/25/40/50, JIS 10K/16K
- Standard size range: 3″ (DN 80) – 40″ (DN 1000) Other sizes on request
- End connection: Wafer, Lugged and Double Flanged
- WESTAD SCORPIO 2X™ fulfillsNORSOK L-001 requirements
Materials
- Body: Stainless Steel, Duplex, Superduplex, Ni-Al-Bronze, Cast Steel, Titanium
- Disc: Stainless Steel, Duplex, Superduplex, Ni-Al-Bronze, Titanium
- Shaft: Stainless Steel, Duplex, Superduplex, Monel, Titanium
- Sealing: PTFE (Spring-energized) – Fire safe
