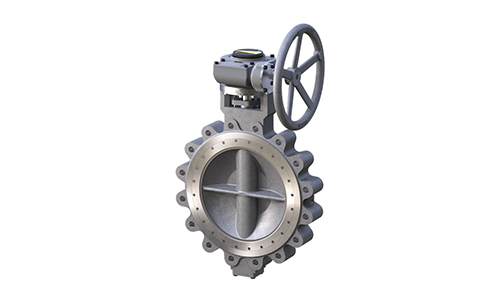

KLINGER WESTAD Butterfly Valves
Designed for special applications.
Butterfly valves regulate or isolate the flow of a liquid medium by means of a rotatable disk. Like ball valves, butterfly valves are also characterized by their quick operation. As a quarter-turn valve, fully opening or closing the valve is achieved by rotating the disk a quarter of a turn.
The KLINGER Westad butterfly valves are designed to meet demanding challenges in terms of different media, pressure, and temperature. Ideally, they are used for LNG, LPG, chemical and other critical applications. The housing is available in the dimensions DN 80 to 1000.
Butterfly Valves Highlights
- Developed for use in LNG, LPG/LEG, chemicals, oil, sea water systems, etc.
- Bi-directional at full pressure rating
- Free access to stuffing box and gland
- Bonnet & shaft extensions available
- Fire safe acc. API 607
- Flange and pressure rating according to ISO PN 10/16/20/25/40/50, ANSI Class 150/300 and JIS 10K/16K
