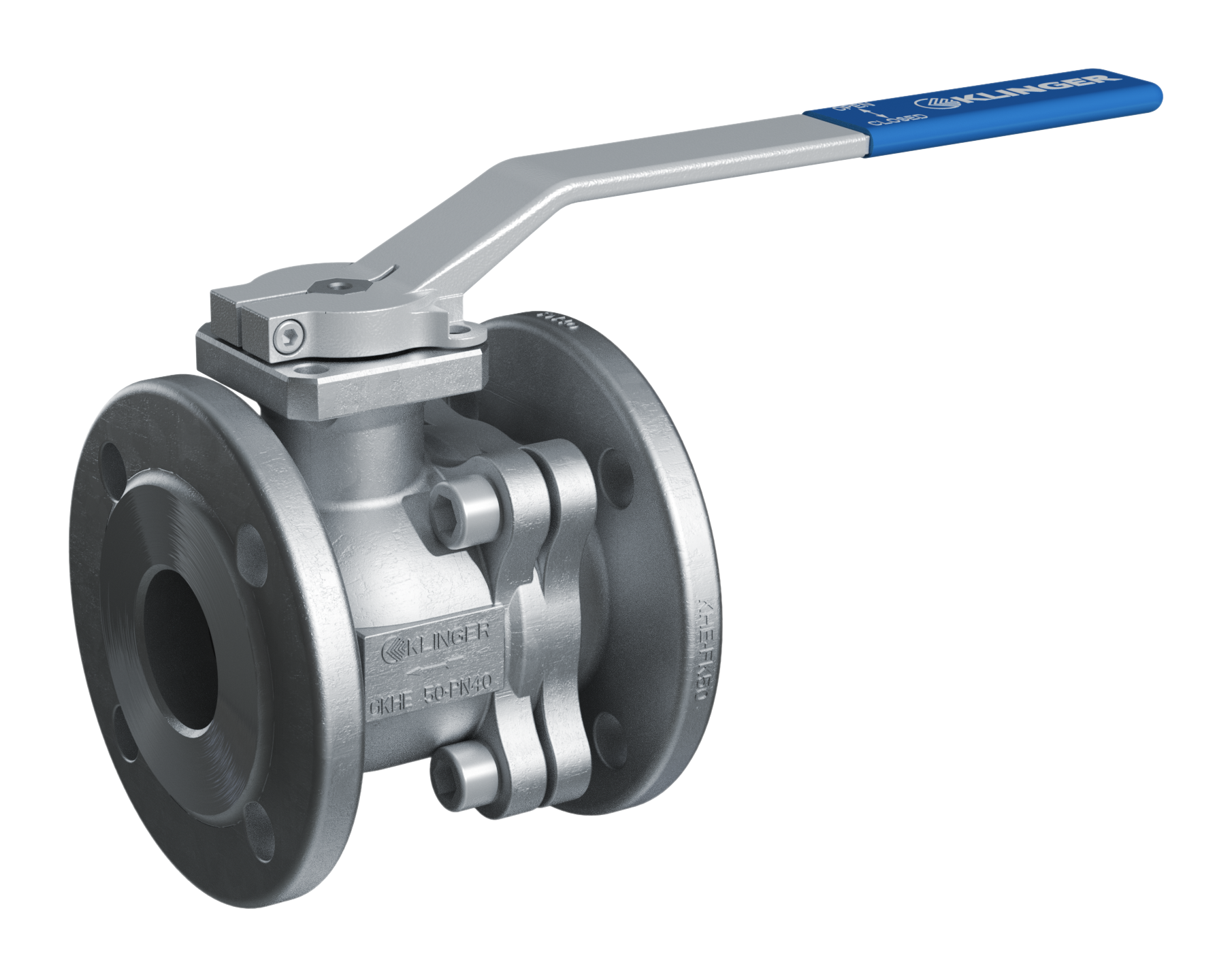

KLINGER BALLOSTAR KHE Ball Valve

2-piece body, flanged ball valve optimised for the process industry

KLINGER Ballostar KHE ball valves feature an innovative 2-piece body design, minimizing sealing areas to reduce external leakage risk. Compliant with ANSI standards (KHE-CL), this valve range includes short-pattern flange valves for versatile applications. The modular system allows you to select operating stems and sealing elements, ensuring dependable performance in diverse conditions, building on the success of the Ballostar KHA valve.

Ballostar KHE Product Details

PN: 16/40, Class 150
DN: 15 – 200, ½“ – 8“
Housing: Cast steel, stainless steel, special materials upon request
Ball: Stainless steel
Operating System: Stainless steel
Temperature: -60 °C to +300 °C
Design: Flanges (short), full bore
Type: Two-piece ball valve

Advantages

Maintenance-free
Supports pressurisation on both side
Ball with cylindrical full bore
Sealing in accordance with EN 12266-1 – leakage rate A
Modular selection of system components
Fire Safe
Antistatic design in accordance with ISO 7121 / EN 1983
Subsequent automation possible at any time (top flange in accordance with EN ISO 5211)
Optimal spare parts availability (as a result of common parts with Ballostar® KHA)

Ballostar KHE – Special Features

Metal seat for abrasive media
Operating stem sealed by O-rings
Operating stem extension
Oxygen version (oil- and grease-free)
Gas version
