KLINGER Graphite and Graphite Laminate Gasket Sheet Materials
Industry leading range of graphite sealing material – highly durable; adaptable for many sealing surfaces and wide temperature ranges
KLINGER supplies the broadest portfolio of graphite laminates in the industry built based on over 35 years of experience with customer needs for OE and MRO (Maintenance, Repair and Operations) applications. All our processes, equipment and products are developed inhouse.
Graphite laminate gaskets are suitable for temperatures between -200 °C and up to 550 °C and offer resistance against a broad range of chemicals. Fitted with an anti-stick finish specifically developed for this purpose, KLINGER graphite laminate gasket materials are easy to remove from the flange – even after exposure to increased temperature levels.
Features
- Coatings – Anti-stick, Polymer, PSA with release paper
- Foil Grades – High purity(nuclear), standard and economy, high temperature
- Inserts:
- Flat, perforated, stretch
- Thickness 0.1, 0.05
- Metallic, non-metallic
Benefits
- Range of gasket thickness for imperfect and sensitive flange conditions.
- Anti-stick, PSA for high pressure challenges.
- Thickness grade selection to minimize leakage.
- Economy grades for customers facing cost pressure.
- Easy handling because of the range of insert types and multiple layers.
Graphite Laminate Sheet Material Types
The pure graphite gasket with a smooth stainless-steel insert
MoreThe pure graphite gasket with rough sheet metal insert
MoreThe more highly compressed pure graphite gasket with two rough sheet metal inserts
MoreFulfils safely the TA-Luft requirements
MoreAn adhesive-free gasket material with eminent results.
MoreThe graphite gasket with a premium multilayer structure
MoreCertified products
Our products are amongst the most approved and certified products within the industry such as:
- DNV GL
- DVGW
- KTW
- BAM conform
- TA-Luft
- Fire safe
We deliver certified and trusted products worldwide and KLINGER AG is EN ISO 9001, ISO 14001 certified.
Dimensions of the standard sheets
- Sizes: 1500 x 1500 mm
- Thicknesses: 1.0 mm, 2.0 mm, 3.0 mm
- Tolerances: Thickness ±5 %
- Length: ±5 mm, Width ±5 mm
Note: Other graphite qualities, thicknesses and sizes on request.
More Gasket Sheet Materials from KLINGER
Fibre-Reinforced Gasket Sheet Materials

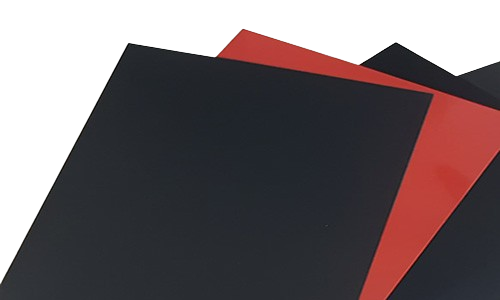

Learn MorePolystrat Rubber Coated Steel Materials
